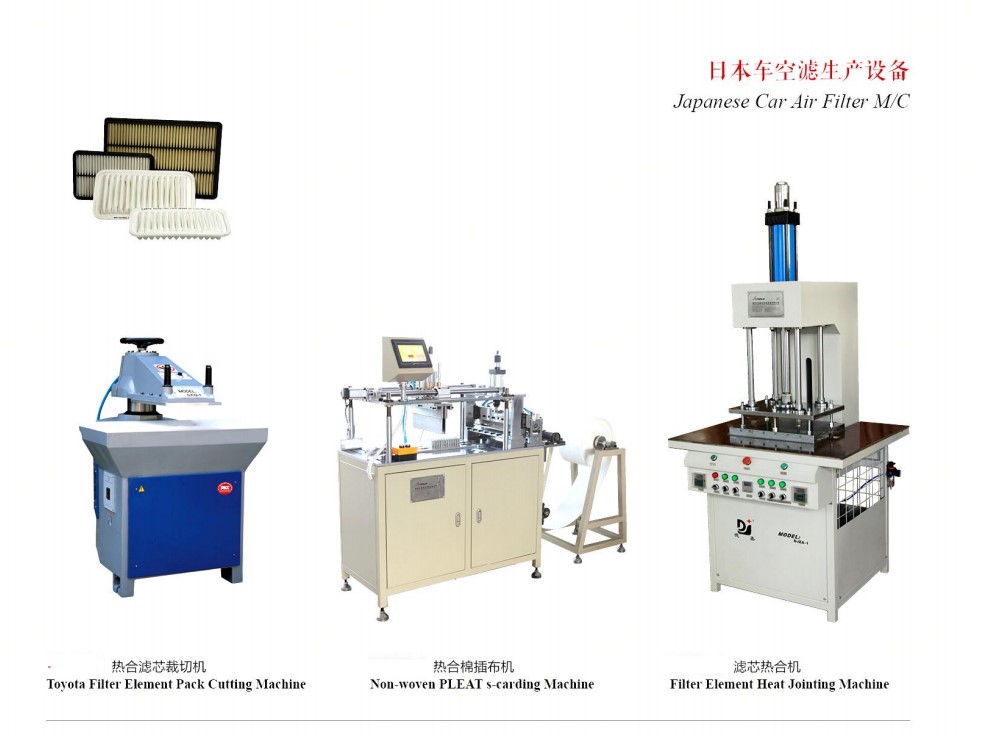

Automobile filter production machine

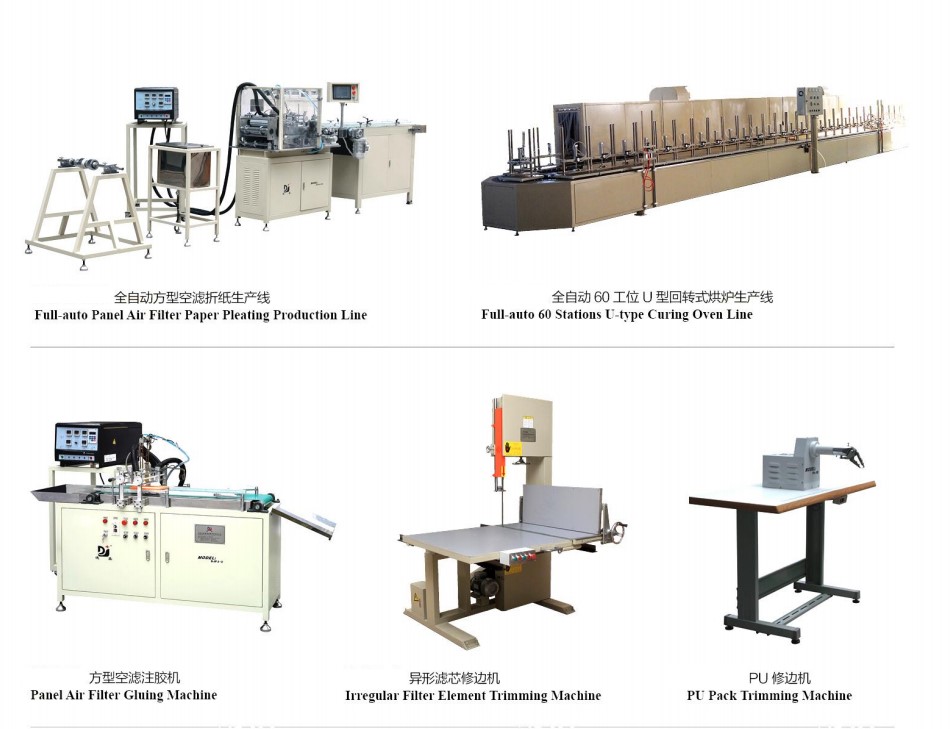

Full auto Knife Paper Pleating Machine series

Primary medium high efficiency Air Filters production machine

Primary medium high efficiency Air Filters production machine

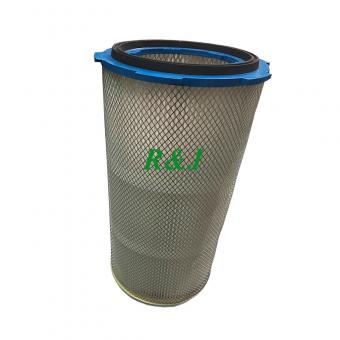

filter cartridge  production machine

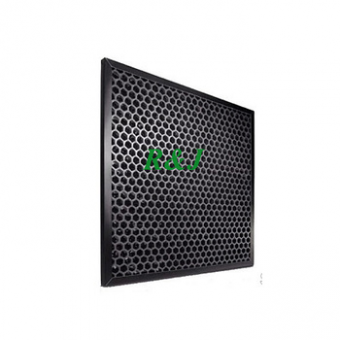

HAF large flow electrostatic air filter material: HAF air filter used polypropylene raw material injection of electrostatic technology, surface made the style of the tongue and grooves with open hole structure, can effectively using electrostatic attraction community is carrying particles, can produce the air flow rate and small pressure difference, make it filter with high efficiency, low resistance, 100% moistureproof, mouldproof and large amount of dust, which can effectively reduce energy consumption.

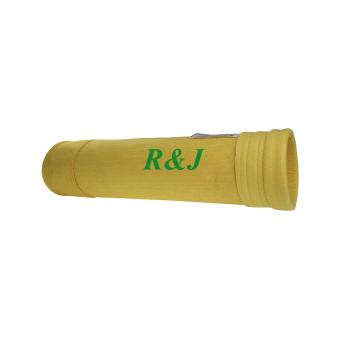

Nylon filter bags are divided into nylon monofilament and nylon multifilament filter bags. In the liquid filtration industry, nylon filter bag is a commonly used filter bag.

Production： Classification Grade Efficiency (%) Resistance (Pa) Tensile Strength Thickness (±0.02mm) Basic Weight (±4g/sqm) Stiffness (≥mg) MD (KN/m) ULPA U16 ≥99.9999 ≤580 1.0-1.25 0.34 75 950 U15 ≥99.999 ≤480 1.0-1.25 0.34 75 950 HEPA 0.3 mm @5.3cm/s H14 ≥99.995 ≤420 1.0-1.25 0.33 74 950 H13 ≥99.97 ≤330 0.9-1.20 0.33 74 900 H12 ≥99.8 ≤260 0.9-1.20 0.33 74 900 H11 ≥98 ≤180 0.9-1.20 0.33 74 900 H10 ≥94 ≤120 0.9-1.20 0.33 74 900 ASHRAE 0.4 mm @5.3cm/s F9 ≥95 ≤80 0.9-1.15 0.33 70 850 F8 ≥90 ≤60 0.9-1.15 0.33 70 850 F7 ≥80 ≤40 0.9-1.15 0.33 70 850 F6 ≥60 ≤25 0.9-1.15 0.33 70 850 Bag style: round bag (steel belt style) flat bag, special-shaped bag, drawstring bag, Filter bag head with thick felt, bottom reinforcement, bag body with iron ring,etc.

Nylon mesh washable filter Specification: ·Washable ·Large air flow and low resistance ·Temperature and moisture resistance ·High acid and alkali resistance Application: Filter dust, be widely used in Fan Unit,diffuser and the indoor equipments withthe large air flow, also applied to the prefiltration of the air condition system and the clean room. Outside Frame: aluminum alloy or nylon mesh Media: PP, PA, PE material Inside frame: galvanized or stainless steel Class: G1,G2 Average arrestance:<65%
