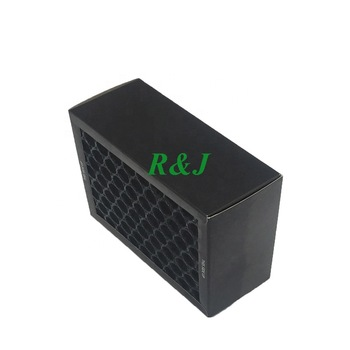

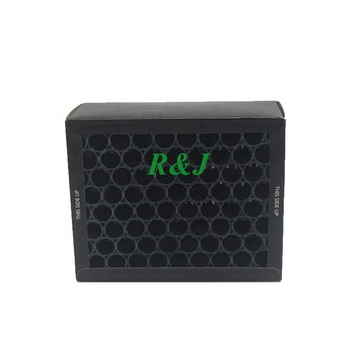

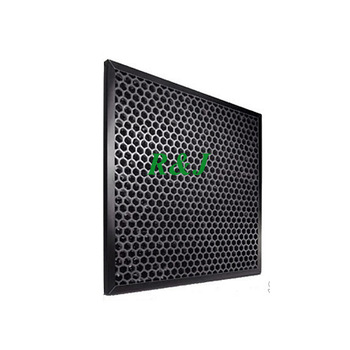

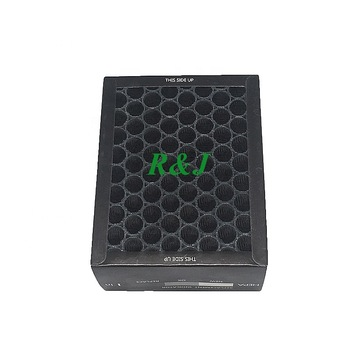

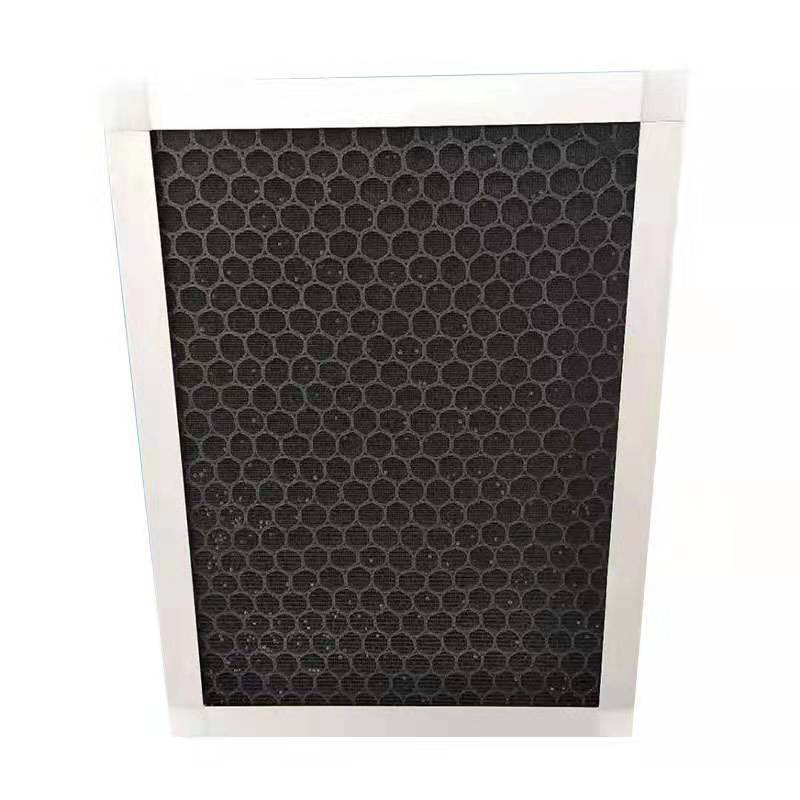

Activated carbon filter

Application 1.Commerial&Industry air ventilation system 2.Chemical plants 3.Paint spray plants 4.Air conditioning 5.Air cleaner, air purifier 6.Automotive car

Product Description High efficiency filter material: PP / fiberglass / Compounded material / PTFE / PET • Advanced structure: Mini-pleated, without clapboard and fixed with hot-melt glue • Frame: Paper / aluminium / galvanized steel • High efficiency, more than 99.97% • Low resistance and large dust holding capacity • Mini pleated without separator, lightweight and convenient to install • Material selectable, washable and reusable (PP / PTFE / PET) • Stable performance, anti-deformation • Material safe, non-toxic and odorless • Diferente shape and size available for all types of machines

Application 1.Commerial&Industry air ventilation system 2.Chemical plants 3.Paint spray plants 4.Air conditioning 5.Air cleaner, air purifier

Production: 500gsm antistatic  polyester needle punched felt Construction Needle Felt Fibre Composition Polyester+Conductive yam Scrim Composition Polyester Felt Area Weight 500g/m2 Thickness 1.7mm Mean Air Permeability 15(m3/m2/min@200pa) Breaking Strength-MD(warp) ≥1100 Breaking Strength-CMD(weft) ≥1500 Breaking Elongation(N/5cm)-MD (warp) ≤35 Breaking Elongation(N/5cm)-CMD (weft) ≤60 Dry shrinkage MD(130℃warp ) ≤1.5 Dry shrinkage CMD(130℃weft ) ≤1.0 Operating Temperatures ≤130 deg C Recommended Maximum Continuous 130 deg C Recommended Maximum Surge 150 deg C Finish Heat set/singed/calendered Bag style: round bag (steel belt style) flat bag, special-shaped bag, drawstring bag, Filter bag head with thick felt, bottom reinforcement, bag body with iron ring,etc. Scope of application: Cement plant, steel plant, waste power plant, asphalt mixing plant, thermal power plant, feed plant, Flour factory, rice factory, ceramics factory, bathroom factory, foundry,etc.

Production： Classification Grade Efficiency (%) Resistance (Pa) Tensile Strength Thickness (±0.02mm) Basic Weight (±4g/sqm) Stiffness (≥mg) MD (KN/m) ULPA U16 ≥99.9999 ≤580 1.0-1.25 0.34 75 950 U15 ≥99.999 ≤480 1.0-1.25 0.34 75 950 HEPA 0.3 mm @5.3cm/s H14 ≥99.995 ≤420 1.0-1.25 0.33 74 950 H13 ≥99.97 ≤330 0.9-1.20 0.33 74 900 H12 ≥99.8 ≤260 0.9-1.20 0.33 74 900 H11 ≥98 ≤180 0.9-1.20 0.33 74 900 H10 ≥94 ≤120 0.9-1.20 0.33 74 900 ASHRAE 0.4 mm @5.3cm/s F9 ≥95 ≤80 0.9-1.15 0.33 70 850 F8 ≥90 ≤60 0.9-1.15 0.33 70 850 F7 ≥80 ≤40 0.9-1.15 0.33 70 850 F6 ≥60 ≤25 0.9-1.15 0.33 70 850 Bag style: round bag (steel belt style) flat bag, special-shaped bag, drawstring bag, Filter bag head with thick felt, bottom reinforcement, bag body with iron ring,etc.

Technical Specification: Operating temperature:204℃-240℃ Resistance to Hydrolysis:restricted Resistance to Acids:restricted Resistance to Alkalis:restricted Resistance to Oxidation:good

Technical Specification: Media:P84 Thickness:2.4mm Unit Weight:500g/㎡ Operating temperature:240℃-260℃

Application 1.Commerial&Industry air ventilation system 2.Chemical plants 3.Paint spray plants 4.Air conditioning 5.Air cleaner, air purifier 6.Automotive car
