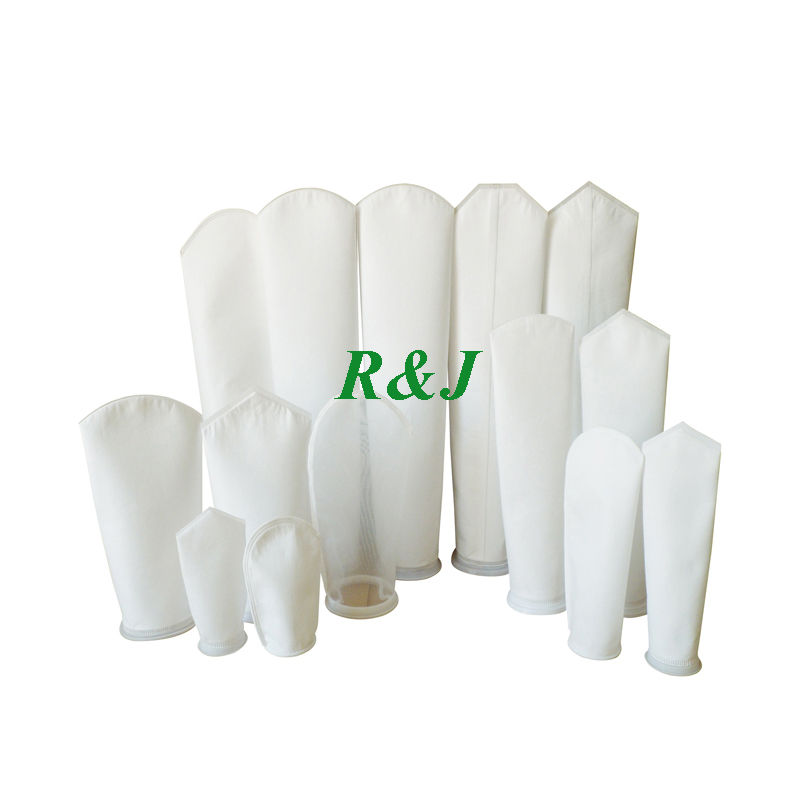

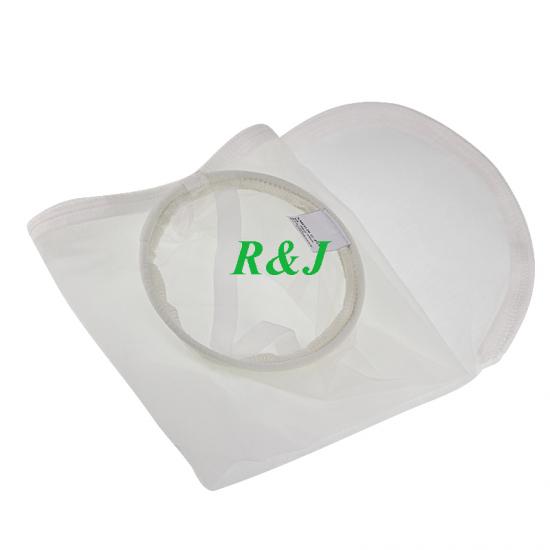

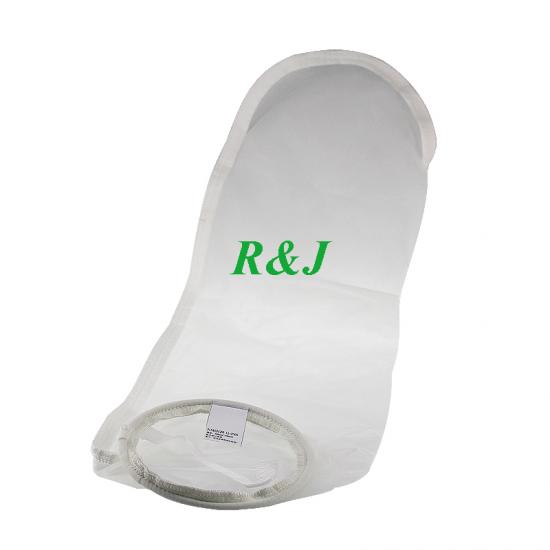

Nylon liquid filter bag

Micron ratings from 1 to 200 Temperature ratings up to 275° F Wide chemical compatibility range Depth loading material High dirt holding capacity Singed to reduce fiber migration

Micron ratings from 1 to 200 Temperature ratings up to 200° F Wide chemical compatibility range Depth loading material High dirt holding capacity

Production: 500gsm antistatic  polyester needle punched felt Construction Needle Felt Fibre Composition Polyester+Conductive yam Scrim Composition Polyester Felt Area Weight 500g/m2 Thickness 1.7mm Mean Air Permeability 15(m3/m2/min@200pa) Breaking Strength-MD(warp) ≥1100 Breaking Strength-CMD(weft) ≥1500 Breaking Elongation(N/5cm)-MD (warp) ≤35 Breaking Elongation(N/5cm)-CMD (weft) ≤60 Dry shrinkage MD(130℃warp ) ≤1.5 Dry shrinkage CMD(130℃weft ) ≤1.0 Operating Temperatures ≤130 deg C Recommended Maximum Continuous 130 deg C Recommended Maximum Surge 150 deg C Finish Heat set/singed/calendered Bag style: round bag (steel belt style) flat bag, special-shaped bag, drawstring bag, Filter bag head with thick felt, bottom reinforcement, bag body with iron ring,etc. Scope of application: Cement plant, steel plant, waste power plant, asphalt mixing plant, thermal power plant, feed plant, Flour factory, rice factory, ceramics factory, bathroom factory, foundry,etc.

Common Applications: Applied to large air flow ventilation system, filtration system of Pharmaceutical, food, hospitals, clean room etc. It can be used as terminal-filtration of medium and high efficiency filtration system or pre-filtration of super-efficient filtration system.

Technical Specification: Media:PE Operating temperature:130℃-150℃ Resistance to Hydrolysis:restricted Resistance to Acids:good Resistance to Alkalis:restricted Resistance to Oxidation:good

1.Large dust holding capacity. 2.It is woven specially with the supplier fiber. 3.The material is content static electricity fiber. 4.All filter mats are manfactured using an eco-friendly recipe.

Technical Specification: Media:PE Operating temperature:130℃-150℃ Resistance to Hydrolysis:restricted Resistance to Acids:good Resistance to Alkalis:restricted Resistance to Oxidation:good

This product uses high-formaldehyde vinylon and shaped polyester yarn as raw materials. A large number of biological clusters adhered to its own surface are repeatedly contacted with oxygenation and sewage to degrade the suspended matter and organic matter in the waste water to achieve the purpose of treatment.
