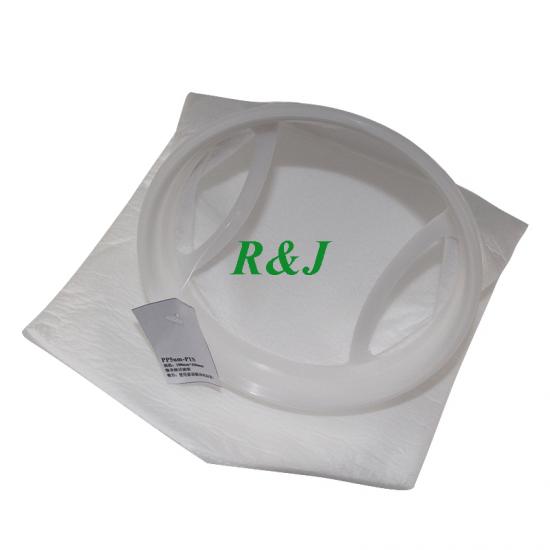

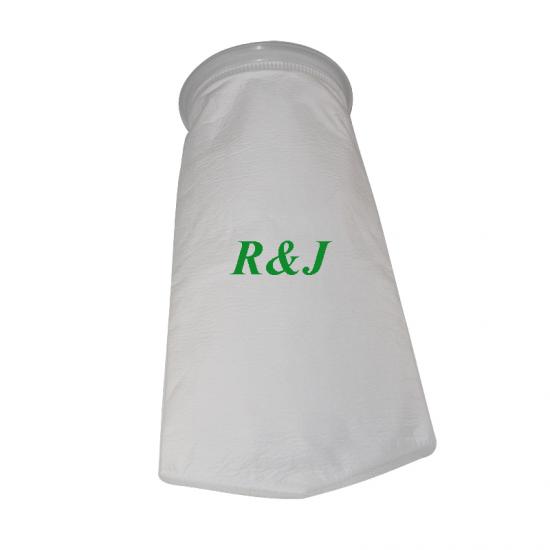

PP liquid filter bag

Nylon filter bags are divided into nylon monofilament and nylon multifilament filter bags. In the liquid filtration industry, nylon filter bag is a commonly used filter bag.

Micron ratings from 1 to 200 Temperature ratings up to 275° F Wide chemical compatibility range Depth loading material High dirt holding capacity Singed to reduce fiber migration

Nylon filter bags are divided into nylon monofilament and nylon multifilament filter bags. In the liquid filtration industry, nylon filter bag is a commonly used filter bag.

This Coarse filter Laminated Filter Medias Laminated wire mesh, the material can 100% polyester also can cotton Fibre and Activated Carbon Nonwoven Fabric. This Pre-Filter Media made by synthetic fiber coated wire mesh for pleated filter.So that the Air Filter have low initial resistance,high dust holding capacity.Coated wire mesh Filter Media made the pre-filter suitable for folding type filter.

Nylon mesh washable filter Specification: ·Washable ·Large air flow and low resistance ·Temperature and moisture resistance ·High acid and alkali resistance Application: Filter dust, be widely used in Fan Unit,diffuser and the indoor equipments withthe large air flow, also applied to the prefiltration of the air condition system and the clean room. Outside Frame: aluminum alloy or nylon mesh Media: PP, PA, PE material Inside frame: galvanized or stainless steel Class: G1,G2 Average arrestance:<65%

Product Description High efficiency filter material: PP / fiberglass / Compounded material / PTFE / PET • Advanced structure: Mini-pleated, without clapboard and fixed with hot-melt glue • Frame: Paper / aluminium / galvanized steel • High efficiency, more than 99.97% • Low resistance and large dust holding capacity • Mini pleated without separator, lightweight and convenient to install • Material selectable, washable and reusable (PP / PTFE / PET) • Stable performance, anti-deformation • Material safe, non-toxic and odorless • Diferente shape and size available for all types of machines

Features: 1.Entirely disposable 2.Low initial pressure drop 3.Competitive price 4.Media: Filter paper 5.Light weight, high quality 6.Long working time

Production： Classification Grade Efficiency (%) Resistance (Pa) Tensile Strength Thickness (±0.02mm) Basic Weight (±4g/sqm) Stiffness (≥mg) MD (KN/m) ULPA U16 ≥99.9999 ≤580 1.0-1.25 0.34 75 950 U15 ≥99.999 ≤480 1.0-1.25 0.34 75 950 HEPA 0.3 mm @5.3cm/s H14 ≥99.995 ≤420 1.0-1.25 0.33 74 950 H13 ≥99.97 ≤330 0.9-1.20 0.33 74 900 H12 ≥99.8 ≤260 0.9-1.20 0.33 74 900 H11 ≥98 ≤180 0.9-1.20 0.33 74 900 H10 ≥94 ≤120 0.9-1.20 0.33 74 900 ASHRAE 0.4 mm @5.3cm/s F9 ≥95 ≤80 0.9-1.15 0.33 70 850 F8 ≥90 ≤60 0.9-1.15 0.33 70 850 F7 ≥80 ≤40 0.9-1.15 0.33 70 850 F6 ≥60 ≤25 0.9-1.15 0.33 70 850 Bag style: round bag (steel belt style) flat bag, special-shaped bag, drawstring bag, Filter bag head with thick felt, bottom reinforcement, bag body with iron ring,etc.
