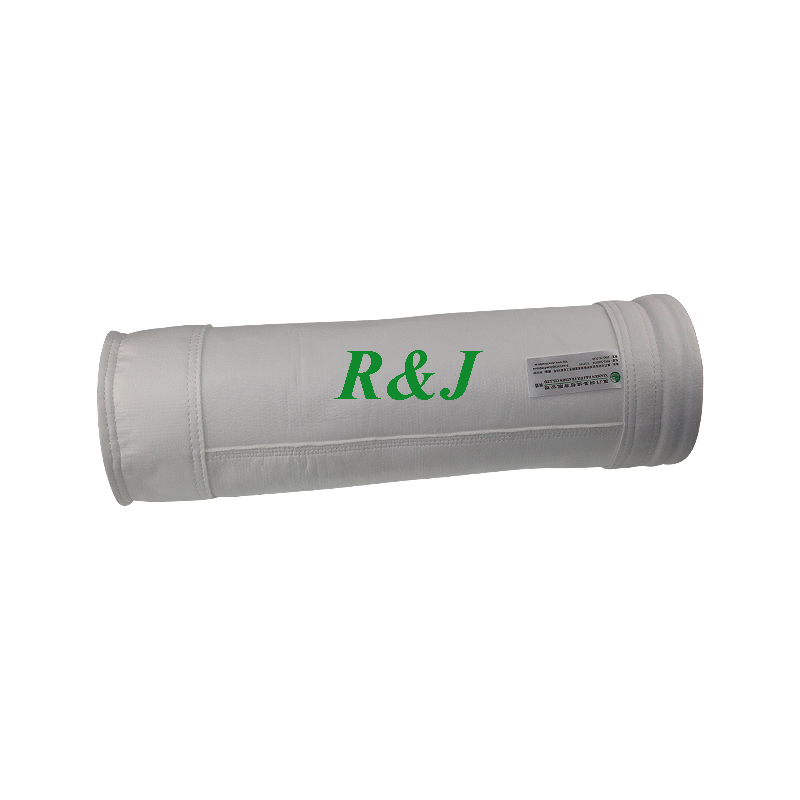

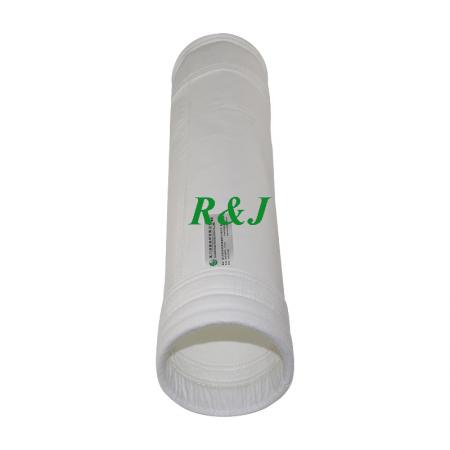

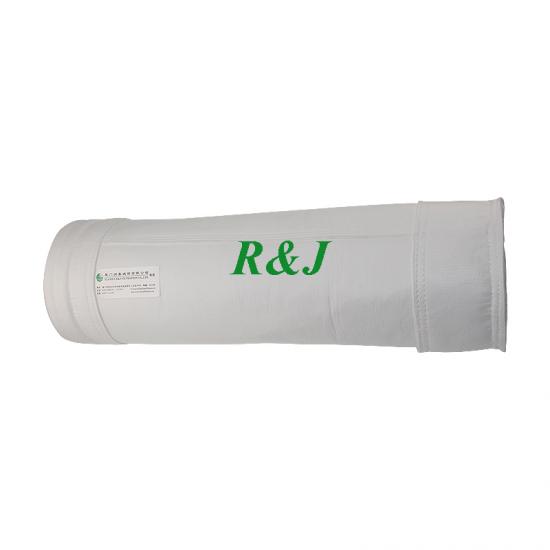

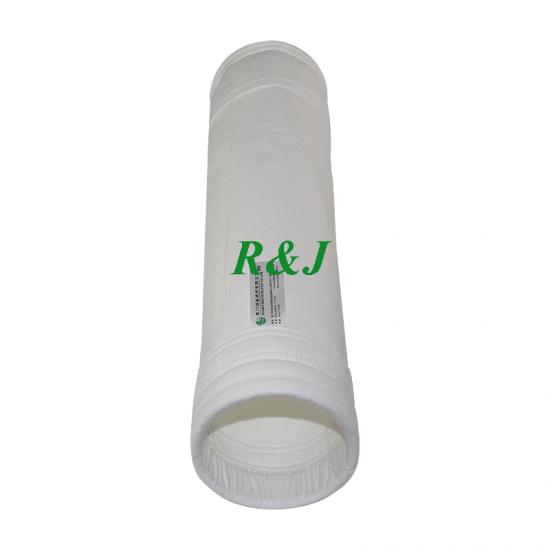

Polyester coated filter bag

Order(MOQ):
1

INQUIRE now

Categories

How can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Product Detail

Production:

500gsm antistatic polyester needle punched felt
Construction	Needle Felt
Fibre Composition	Polyester+Conductive yam
Scrim Composition	Polyester
Felt Area Weight	500g/m²
Thickness	1.7mm
Mean Air Permeability	15(m3/m2/min@200pa)
Breaking Strength-MD(warp)	≥1100
Breaking Strength-CMD(weft)	≥1500
Breaking Elongation(N/5cm)-MD (warp)	≤35
Breaking Elongation(N/5cm)-CMD (weft)	≤60
Dry shrinkage MD(130℃warp )	≤1.5
Dry shrinkage CMD(130℃weft )	≤1.0
Operating Temperatures	≤130 deg C
Recommended Maximum Continuous	130 deg C
Recommended Maximum Surge	150 deg C
Finish	Heat set/singed/calendered

Bag style:

round bag (steel belt style) flat bag, special-shaped bag, drawstring bag,
Filter bag head with thick felt, bottom reinforcement, bag body with iron ring,etc.

Scope of application:
Cement plant, steel plant, waste power plant, asphalt mixing plant, thermal power plant, feed plant,
Flour factory, rice factory, ceramics factory, bathroom factory, foundry,etc.
